TX75XXH General Description:
The TX75XXH series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 32V. They are available with several fixed output voltages ranging from 2.5V to 5.0V.
CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
TX75XXH Features:
Low power consumption
Low voltage drop
Low temperature coefficient
High input voltage (up to 32V)
Output voltage accuracy: tolerance ±3%
TO92 and SOT89 package
TX75XXH Applications:
Battery-powered equipment
Communication equipment
Audio/Video equipment
TX75XXH Selection Table:
|
Part No.
|
Output Voltage
|
Package
|
Marking
|
|
TX7525Hxx
|
2.5V
|
TO92
SOT89
|
75XX-H#(for TO92)
75XX-H#(for SOT89)
|
|
TX7527Hxx
|
2.7V
|
||
|
TX7530Hxx
|
3.0V
|
||
|
TX7533Hxx
|
3.3V
|
||
|
TX7536Hxx
|
3.6V
|
||
|
TX7540Hxx
|
4.0V
|
||
|
TX7544Hxx
|
4.4V
|
||
|
TX7550Hxx
|
5.0V
|
Note:”XX” stands for output voltages.
TO92 & SOT89 packages will add a “#” mark at the end of the marking.
TX75XXH Order Information:
TX75①②③④⑤
|
Designator
|
Symbol
|
Description
|
|
①②
|
Integer
|
Output Voltage(2.1~6.0V)
|
|
③
|
H
|
Standard
|
|
④
|
T
|
Package:TO-92
|
|
P
|
Package:SOT89
|
|
|
⑤
|
R
|
RoHS/Pb Free
|
|
G
|
Halogen Free
|

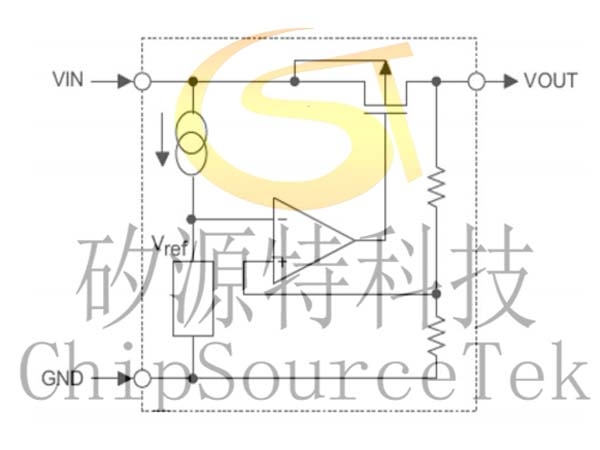

TX75XXH Block Diagram:

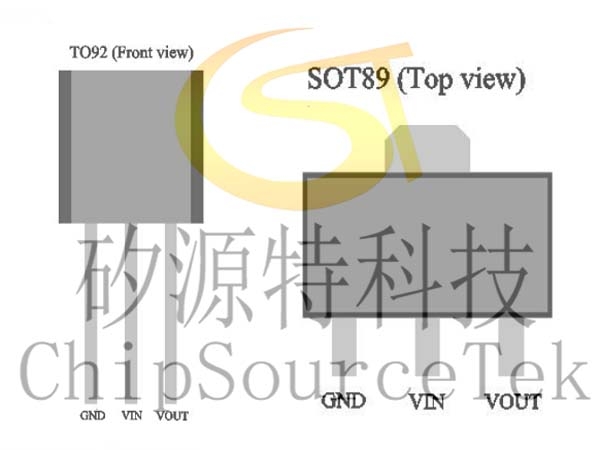

TX75XXH Pin Assignment:
TX75XXH Application Circuits:

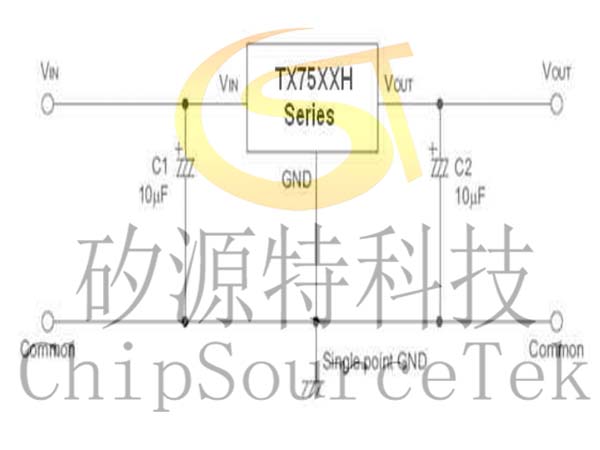

Basic Circuits

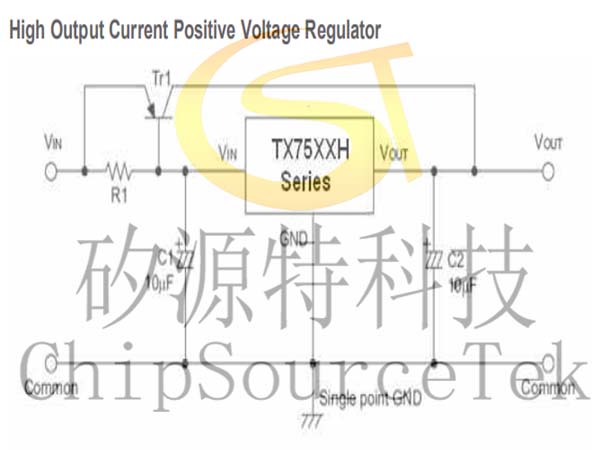

High Output Current Positive Voltage Regulator

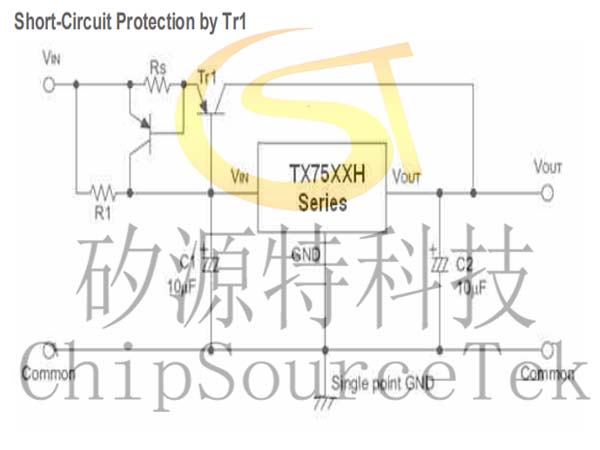

Short-Circuit Protection by Tr1

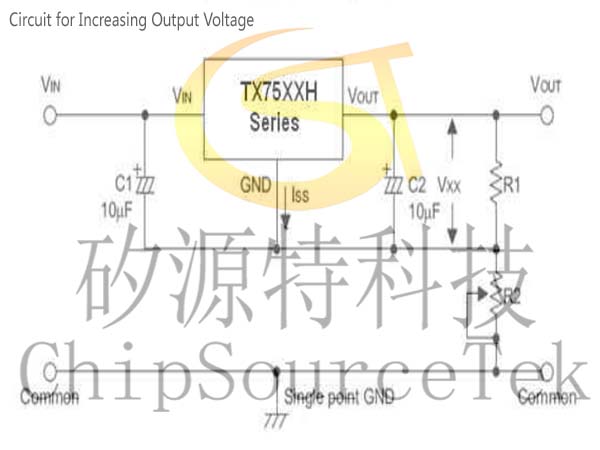

Circuit for Increasing Output Voltage

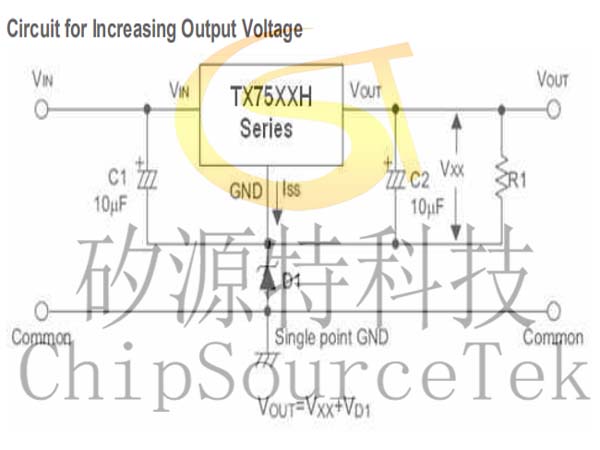

Circuit for Increasing Output Voltage

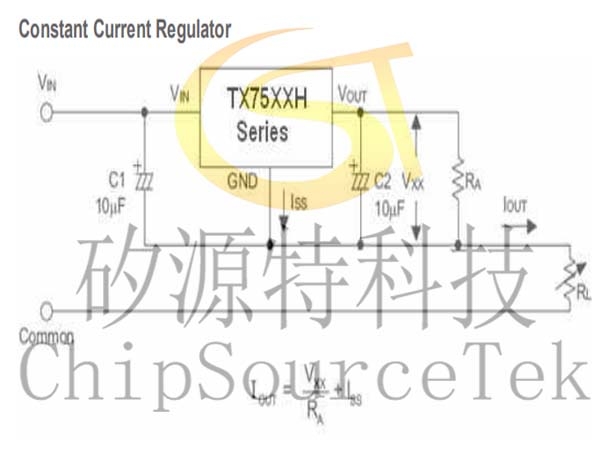

Constant Current Regulator
Dual Supply
