LPA2110概述：
The LPA2110 is a 30W, class F mono audio amplifier integrated Class AB/D optional mode. It is capable of delivering 29watts of continuous average power to a 4Ω BTL load with less than 10% distortion (THD) from a 15V DC power supply. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction.
The LPA2110 device is fully protected against faults with short-circuit protection and thermal protection as well as over-voltage and DC protection. Faults are reported back to the processor to prevent devices form being damaged during overload conditions.
LPA2110 Marking Information ESOP8.
The LPA2110 device is fully protected against faults with short-circuit protection and thermal protection as well as over-voltage and DC protection. Faults are reported back to the processor to prevent devices form being damaged during overload conditions.
LPA2110 Marking Information ESOP8.
LPA2110 Features：
Wide voltage range: 4.3V~15.5V
550KHz fixed frequency switching for amplifier
29W Output at 10% THD with a 4Ω Load and 15V VDD for amplifier
19W Output at 10% THD with a 4Ω Load and 12V VDD for amplifier
Integrated Self-Protection Circuits Including Over-Voltage, Under-Voltage, Over-Temperature,DC-Detect, and Short Circuit
High Efficient Class-D Operation: >86%
Filterless, Low Quiescent Current and Low EMI
Pb-Free Package LPA2110 ESOP8
LPA2110 Marking Information:
| Device | Marking | Package | Shipping |
| LPA2110SPF | LPS LPA2110 YWX |
ESOP-8 | 4000PCS/REEL |
| Y: Y is year code. W: W is week code. X: X is series number. | |||
LPA2110 Applications:
Mini-Micro Component, Speaker Bar, Docks
After-Market Automotive
Consumer Audio Applications, CRT TV
Portable Bluetooth Speaker
Square Speaker

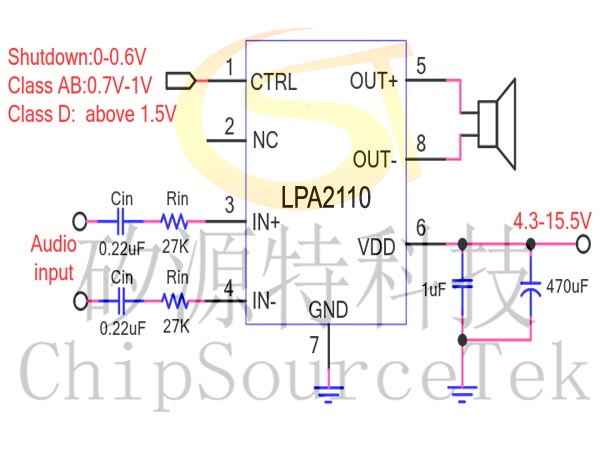

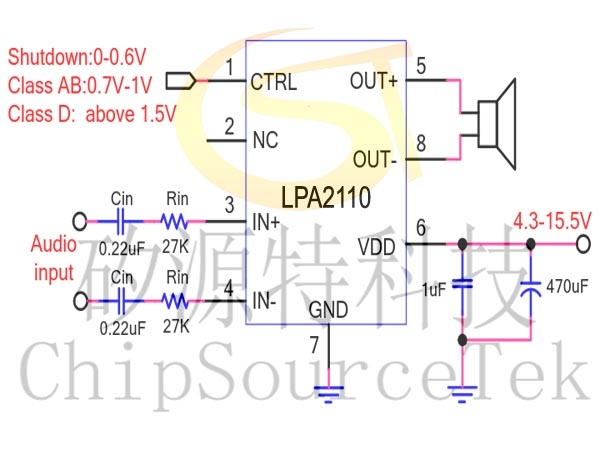

LPA2110 Typical Application Circuit:

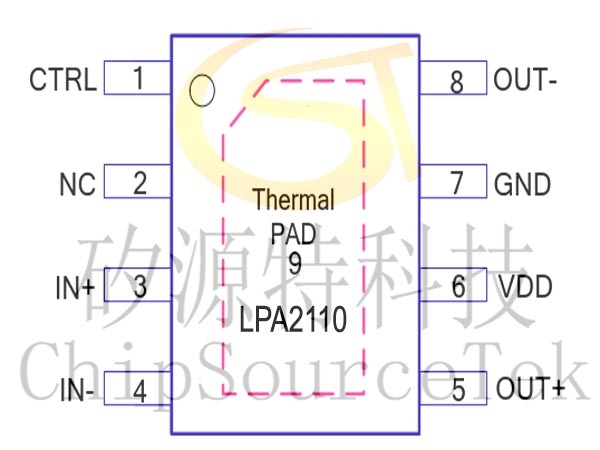

LPA2110 Pin Configuration (TOP View):

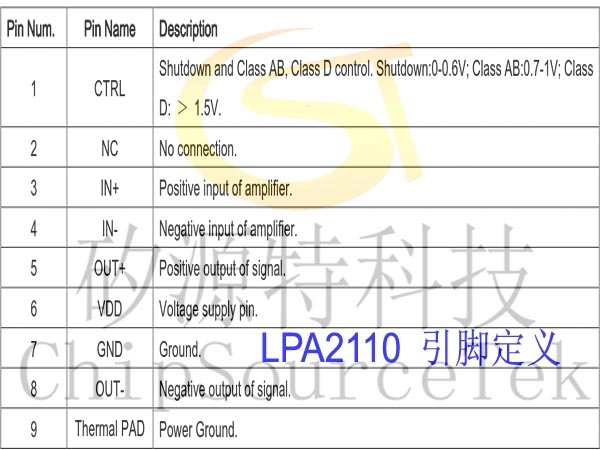

LPA2110 Functional Pin Description:

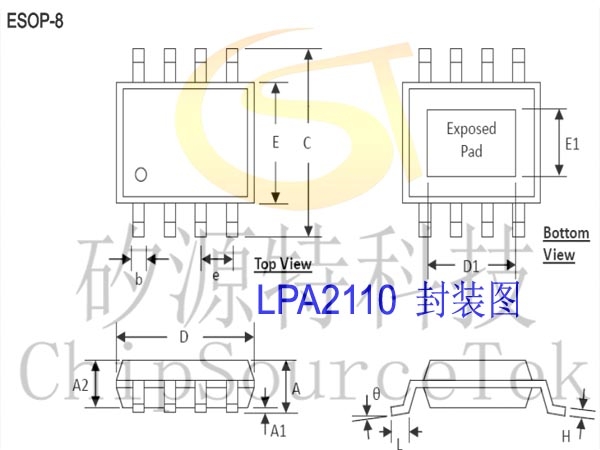

LPA2110 Packaging information:
