MX8205是VDS=20V,ID=6A,RDS(ON)(Typ.)=20mΩ@VGS=4.5V的N沟通MOSFET,MX8205丝�。�8205，MX8205提供SOT23-6封装

MX8205 DESCRIPTION:

MX8205是VDS=20V,ID=6A,RDS(ON)(Typ.)=20mΩ@VGS=4.5V的N沟通MOSFET,MX8205丝�。�8205，MX8205提供SOT23-6封装。

The MX8205 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

MX8205 GENERAL FEATURES：

VDS=20V, ID=6A

RDS(ON)(Typ.)=20mΩ @ VGS=4.5V

RDS(ON)(Typ.)=21m? @ VGS=3.8V

RDS(ON)(Typ.)=26mΩ @ VGS=2.5V

High Power and current handing cpability

Lead free product is acquired

Surface Mount Package

MX8205 APPLICATION :

Battery protection

Load switch

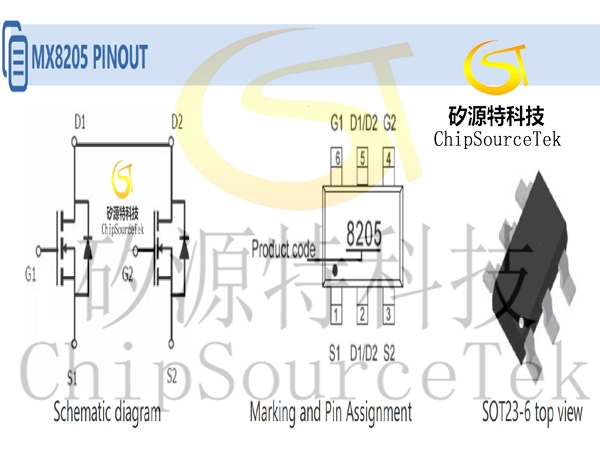

MX8205 PINOUT：

MX8205 ORDERING INFORMATION:

Part Number	StorageTemperature	Package	Devices Per Reel
MX8205	-55°C to 150°C	SOT23-6	3000

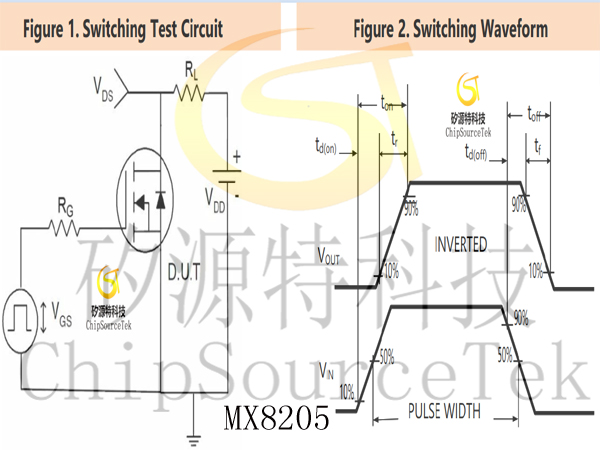

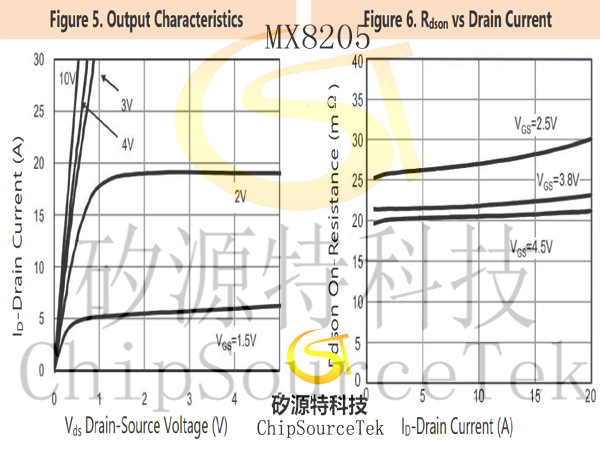

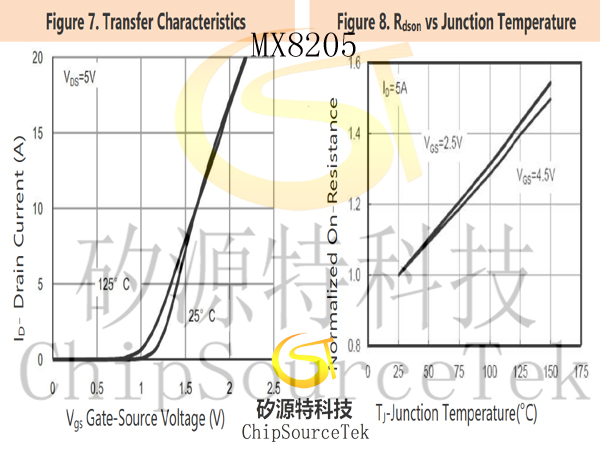

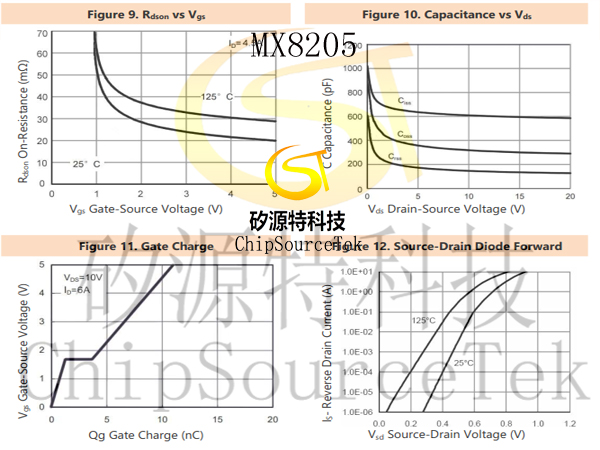

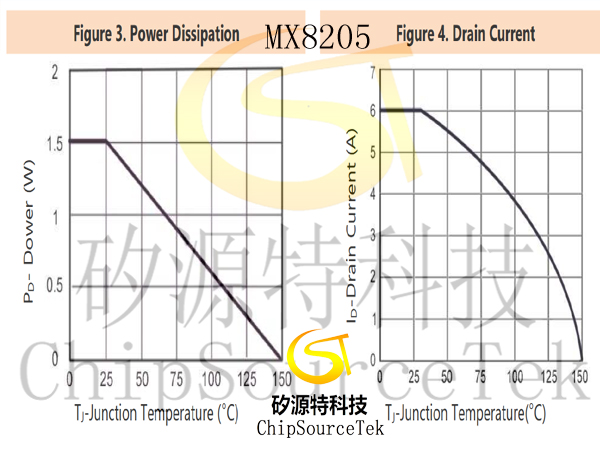

MX8205 TYPICAL ELECTRICAL AND THERMAL CHARACTERISTICS：

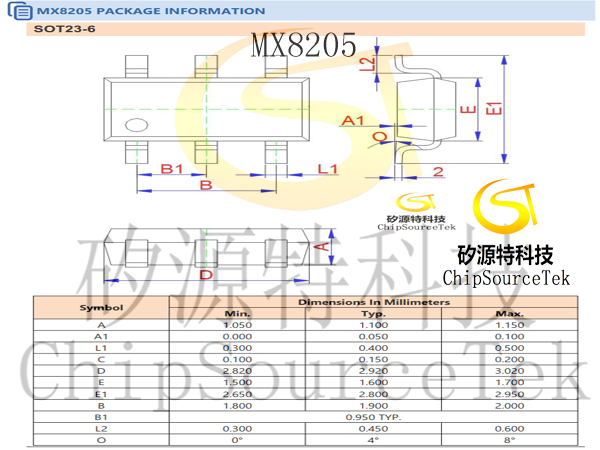

MX8205 PACKAGE INFORMATION :

SOT23-6:
