CST8810是BVDSS=20V,ID=7A,RDSON=12mΩ的双N沟道快速切换Mosfets。提供SOT23-6L封装。

The CST8810 is the low RDSON trenched NCH MOSFETs with robust ESD protection. This product is suitable for Lithium-ion battery pack applications.

The CST8810 meet the RoHS and Green Product requirement with full function reliability approved.

CST8810 Description/描述：

CST8810是BVDSS=20V,ID=7A,RDSON=12mΩ的双N沟道快速切换Mosfets。提供SOT23-6L封装。

The CST8810 is the low RDSON trenched NCH MOSFETs with robust ESD protection. This product is suitable for Lithium-ion battery pack applications.

The CST8810 meet the RoHS and Green Product requirement with full function reliability approved.

CST8810 Features/特性:

Green Device Available

Super Low Gate Charge

Excellent Cdv/dt effect decline

Advanced high cell density Trench technology

CST8810 Product Summary/产品概览：

BVDSS	RDSON	ID
20V	12mΩ	7A

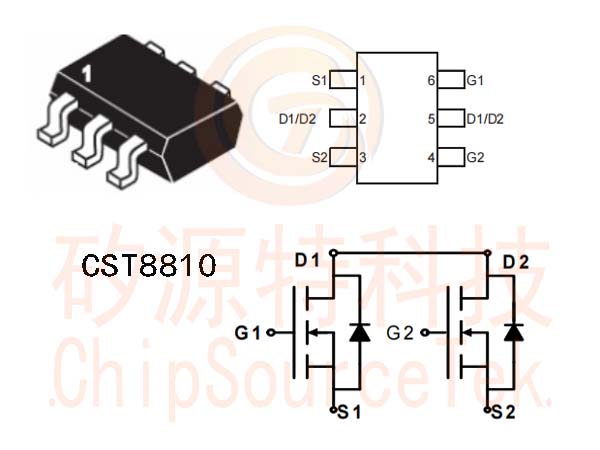

CST8810 SOT23-6L Pin Configuration/引脚配置：

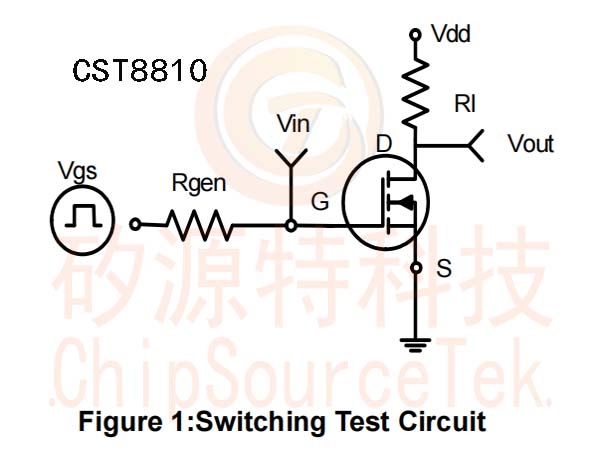

CST8810 Switching Test Circuit/开关测试电路：

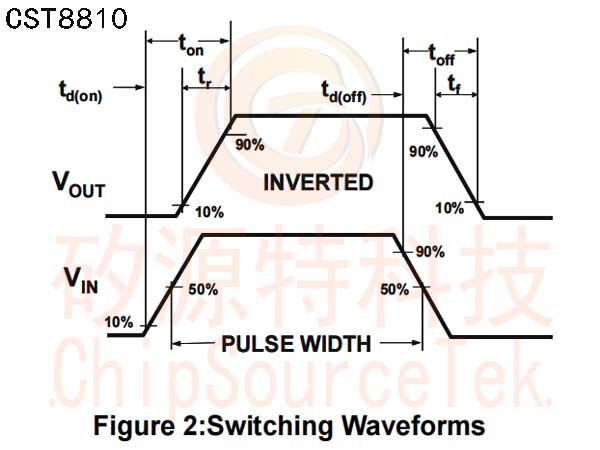

CST8810 Switching Waveforms/开关波形：
