CST5300 Description：
CST5300 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) device. It can disconnect IN to OUT to protect load in case wrong input operating conditions are detected. The system is positive over voltage protected up to 36V. The internal over voltage thresholds (OVLO) is 6.1V and internal over current thresholds (OCP) is 2.3A.
CST5300 also has internal over temperature protect (OTP) function and it can monitor chip temperature to protect the device.The CST5300 is available in SOT23-6L package. Standard products are Pb-free and Halogen-free.
CST5300是一款过压保护(OVP)和过流保护(OCP)设备。如果检测到错误的输入操作条件，它可以断开输入到输出以保护负载。该系统具有高达36V的正过压保护。内部过压阈值(OVLO)为6.1V，内部过流阈值(OCP)为2.3A。
CST5300还具有内部过温保护(OTP)功能，可以监控芯片温度以保护器件。CST5300采用SOT23-6L封装。标准产品无铅无卤。
CST5300 Features：
Typical RON: 130mΩ N-Channel MOSFET @5V/1A
Maximum Output Current: 2.0A.
Maximum input voltage: 36V
Internal Over voltage Lockout : 6.1V
Internal Over current Lockout : 2.3A(TYP @TA= 25℃)
Over voltage-Protection Response Time：50ns(TYP.)
Startup Debounce Time: 14ms (TYP.)
Typical Output Power on Time: 1.4ms (TYP.)
Internal Thermal-Shutdown Protection
ESD Protected: Human Body Model：JESD22-A114(All pins)±2KV
SOT23-6L
CST5300 Applications：
GPS
PMP
MID
PAD
Digital cameras
Digital Videos

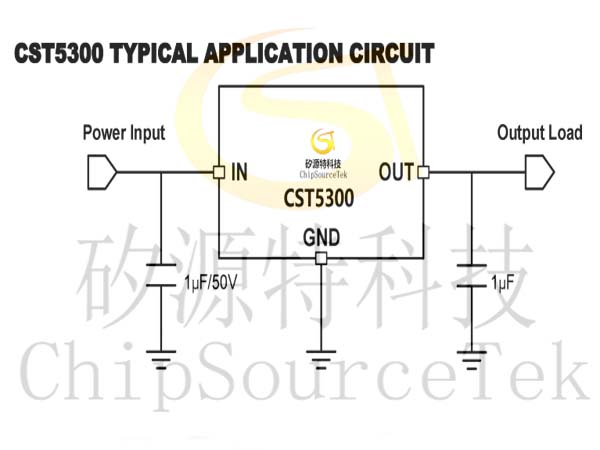

CST5300 Typical Application Circuit：

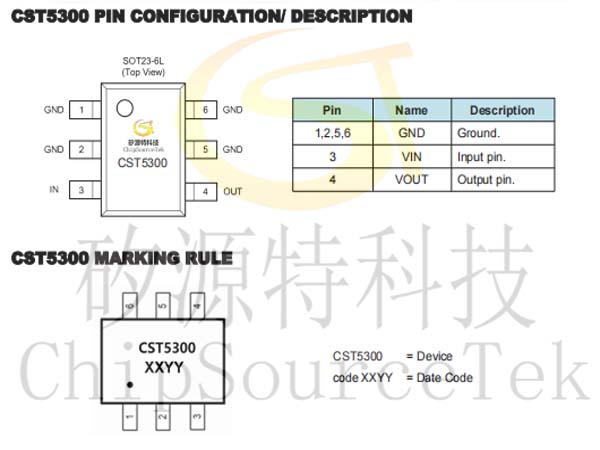

CST5300 Order Information：
|
Part Number
|
Package
|
Marking
|
Packing Option
|
|
CST5300MR-G
|
SOT23-6L
|
CST5300
XXYY
|
Tape and Reel, 3000
|

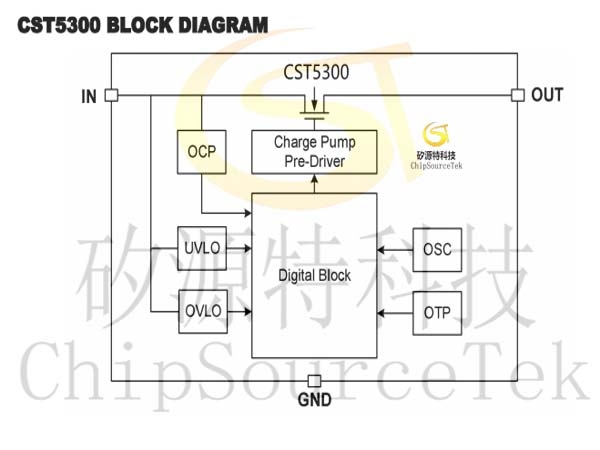

CST5300 Block Diagram：
