TX6202 General Description:
The TX6202 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
The TX6202 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series. SOT89 and SOT23-3 packages are available.
TX6202,TX6202P252M,TX6202P282M,TX6202P302M,TX6202P332M,TX6202P362M,TX6202P402M,TX6202P452M,TX6202P502M
TX6202,TX6202P252M,TX6202P282M,TX6202P302M,TX6202P332M,TX6202P362M,TX6202P402M,TX6202P452M,TX6202P502M
TX6202 Features :
Low voltage drop: 0.26V@100mA
High input voltage: 15V
Low temperature coefficient
Large Output Current: >0.5A
Low Quiescent Current: 2.0uA
Output voltage accuracy: tolerance ±2%
Built-in current limiter
SOT89 and SOT23-3 package
TX6202 Applications:
Battery-powered equipment
Hand-Hold Equipment
GRS Receivers
Wireless LAN
TX6202 Selection Table:
|
Part No. |
Output Voltage |
Package |
Marking |
|
TX6202P252M |
2.5V |
SOT89 SOT23-3 |
24TX |
|
TX6202P282M |
2.8V |
24XX |
|
|
TX6202P302M |
3.0V |
24ZX |
|
|
TX6202P332M |
3.3V |
252X |
|
|
TX6202P362M |
3.6V |
255X |
|
|
TX6202P402M |
4.0V |
259X |
|
|
TX6202P452M |
4.5V |
25EX |
|
|
TX6202P502M |
5.0V |
25MX |
TX6202 Order Information:
TX6202P①②③④
|
Designator
|
Symbol
|
Description
|
|
①②
|
Integer
|
Output Voltage(1.5~5.0V)
|
|
③
|
2
|
accuracy
|
|
④
|
P
|
Package:SOT89
|
|
M
|
Package:SOT23-3
|

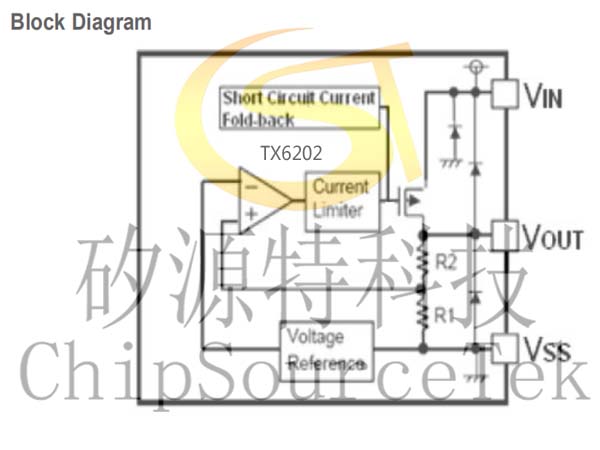

TX6202 Block Diagram:

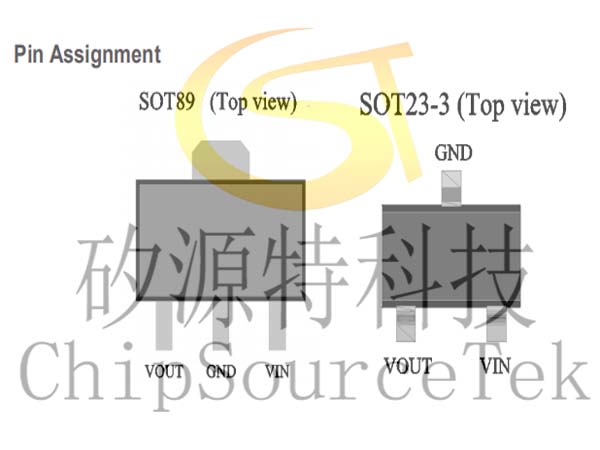

TX6202 Pin Assignmen:

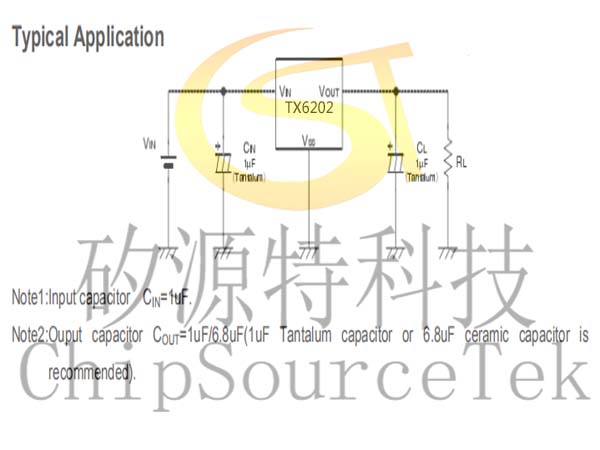

TX6202 Typical Application:
TX6202 Typical Application:
