TX61C

The TX61C series devices are a set of three terminal low power voltage detectors implemented in CMOS technology.

Each voltage detector in the series detects a particular fixed voltage ranging from 0.9V to 5.0V.

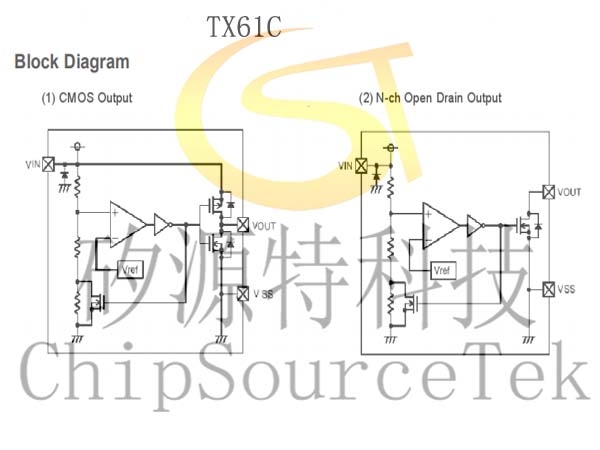

The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator,hysteresis circuit, and an output driver (CMOS inverter or NMOS open drain). CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.

TX61C General Description：

The TX61C series devices are a set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 0.9V to 5.0V. The voltage detectors consist of a high-precision and low power consumption standard voltage source as well as a comparator,hysteresis circuit, and an output driver (CMOS inverter or NMOS open drain). CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages.

TX61C Features：

Low power consumption

Low temperature coefficient

Built-in hysteresis characteristic

High input voltage (up to 8V)

Output voltage accuracy: ±2%@VDET≥2.5mV ±50mV@VDET＜2.5mV

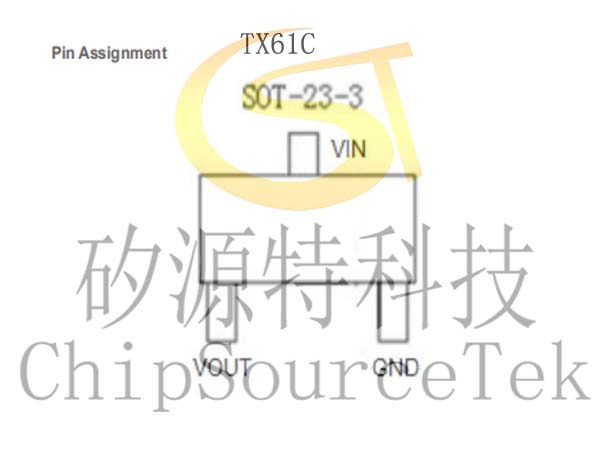

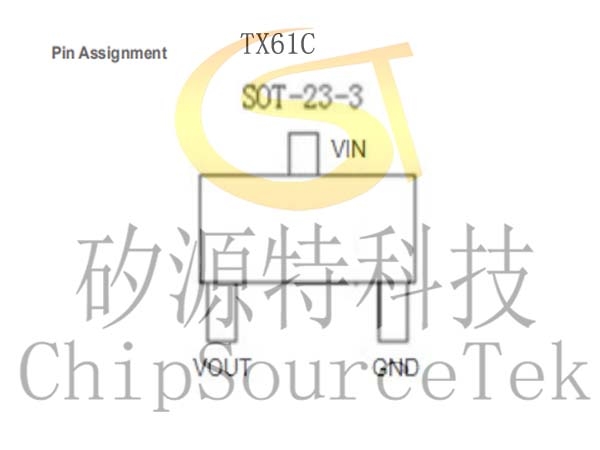

SOT23-3 and SOT23 package

TX61C Applications：

Battery checkers

Level selectors

Power failure detectors

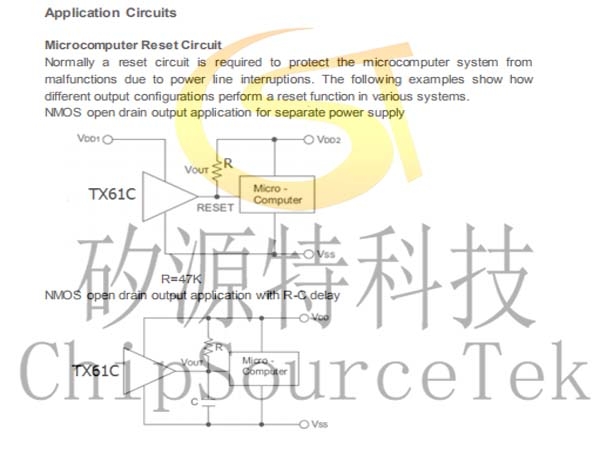

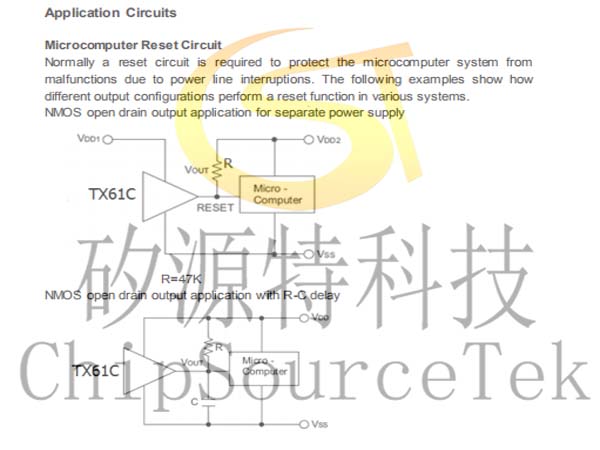

Microcomputer reset

Battery memory backup

Non-volatile RAM signal storage protectors

TX61C Selection Table：

Part No.	Det. Voltage	Hys. Width	Output	Tolerance	Package
TX61CC0902MR	0.9V	4%	CMOS	±50mV	SOT23-3 SOT23
TX61CN0902MR	0.9V	4%	NMOS	±50mV
TX61CC1002MR	1.0V	4%	CMOS	±50mV
TX61CN1002MR	1.0V	4%	NMOS	±50mV
…	…	…	…	…
TX61CC2402MR	2.4V	4%	CMOS	±50mV
TX61CN2402MR	2.4V	4%	NMOS	±50mV
TX61CC2502MR	2.5V	4%	CMOS	±2%
TX61CN2502MR	2.5V	4%	NMOS	±2%
…	…	…	…	±2%
TX61CC5002MR	5.0V	4%	CMOS	±2%
TX61CN5002MR	5.0V	4%	NMOS	±2%

TX61C Order Information：

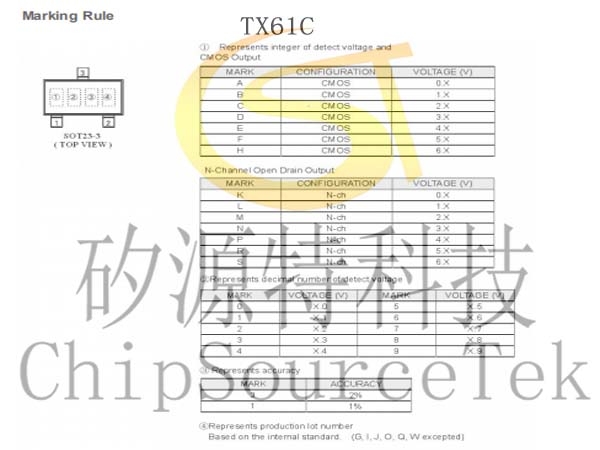

TX61C①②③④⑤⑥⑦

Designator	Symbol	Description
①	C	CMOS output
①	N	NMOS output
②③	VOUT	Output Voltage(0.9~5.0V)
④⑤	02	Standard
⑥	M	Package:SOT23-3
⑥	N	Package:SOT23
⑦	R	RoHS / Pb Free
⑦	G	Halogen Free
