产品中心

< >

PE58120PA是VDS=85V,ID=120A，RDS(ON)<5.6m? @VGS=10V的N-Channel Enhancement Mode Power MOSFET.
PE58120PA的丝印是PE58120P.PE58120PA提供TO-263封装.

The PE58120PA uses deep trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE58120PA概述：

PE58120PA是VDS=85V,ID=120A，RDS(ON)<5.6m? @VGS=10V的N-Channel Enhancement Mode Power MOSFET.PE58120PA的丝印是PE58120P.PE58120PA提供TO-263封装.

The PE58120PA uses deep trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE58120PA特性：

VDS = 85V, ID = 120A

RDS(ON) < 5.6m? @VGS=10V

High Power and current handing capability

Lead free product is acquired

Surface Mount Package

PE58120PA应用：

PWM applications

Load switch

Power management

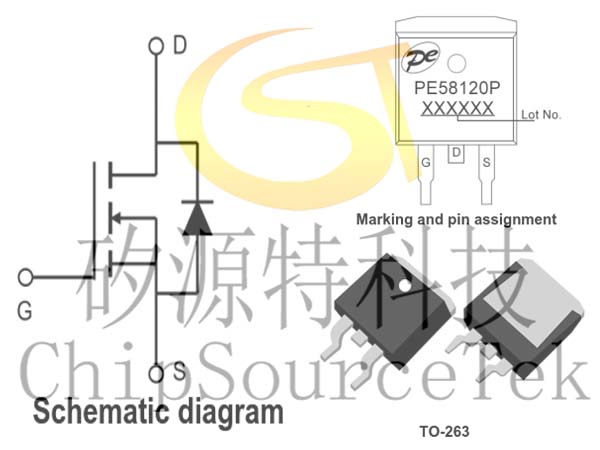

PE58120PA典型应用及引脚：
