    当前位置：云顶贵宾会 >> 产品中心 >> Mosfet >> 单N-MOS

    单N-MOS

    CST20N03D PDFN3*3

        CST20N03D是VDS=30V,ID=20A的N通道Mosfets。
        The CST20N03D is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
        The CST20N03D meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
      CST20N03D Description/概述：
          CST20N03D是VDS=30V,ID=20A的N通道Mosfets。
          The CST20N03D is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
          The CST20N03D meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

      CST20N03D Features/特性：
      Super Low Gate Charge
      100% EAS Guaranteed
      Green Device Available
      Excellent CdV/dt effect decline
      Advanced high cell density Trench technology

      CST20N03D Product Summary/产品概览:
      BVDSS
      RDSON
      ID
      30V
      15mΩ
      20A

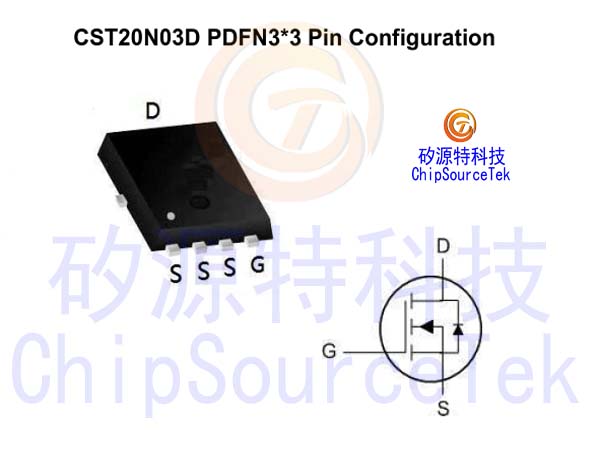

      CST20N03D PDFN3*3 Pin Configuration/引脚配置:

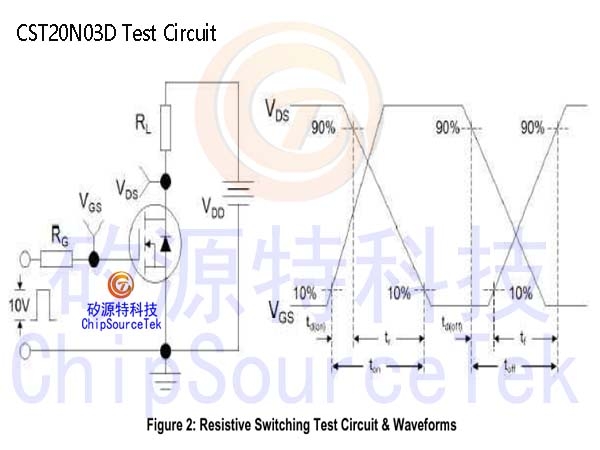

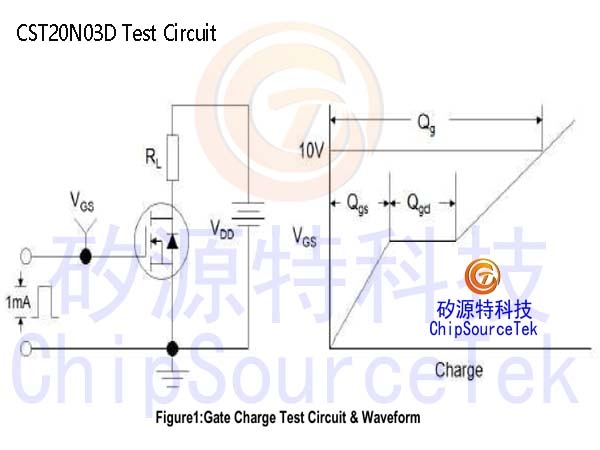

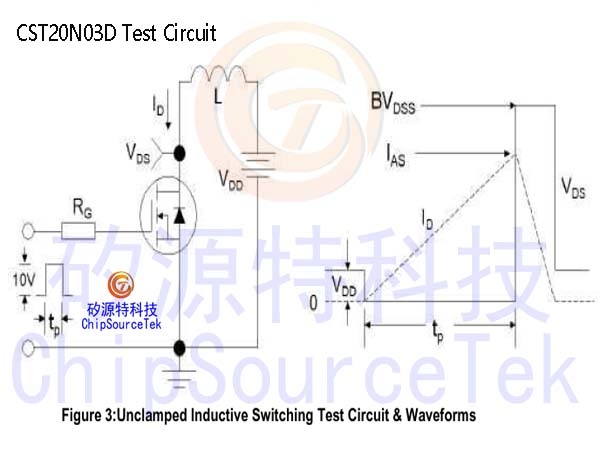

      CST20N03D Test Circuit/测试电路:


      请提交您的基本信息，发邮件Sales@ChipSourceTek.com,或者打电话给我们,13823761625(微信同号),我们将会尽快与您联系！

      *

      *

      *

      *
