MOT80N03C/D是VDSS=30V,ID=80A,R(on)typ.( V=4.5V)=9mΩ,R(on)typ.( V=10V)的N沟道Mosfet。提供TO-252,TO-251封装。

This is suitable for the most demanding DC-DC converter application where high efficiency is to be achieved.

MOT80N03C/D Description/概述：

MOT80N03C/D是VDSS=30V,ID=80A,R(on)typ.( V=4.5V)=9mΩ,R(on)typ.( V=10V)的N沟道Mosfet。提供TO-252,TO-251封装。

This is suitable for the most demanding DC-DC converter application where high efficiency is to be achieved.

MOT80N03C/D Features/特性：

Fast switching capability

Avalanche energy tested

Improved dv/dt capability, high ruggedness

MOT80N03C/D Product Characteristics：

MOT80N03C/D Order Information：

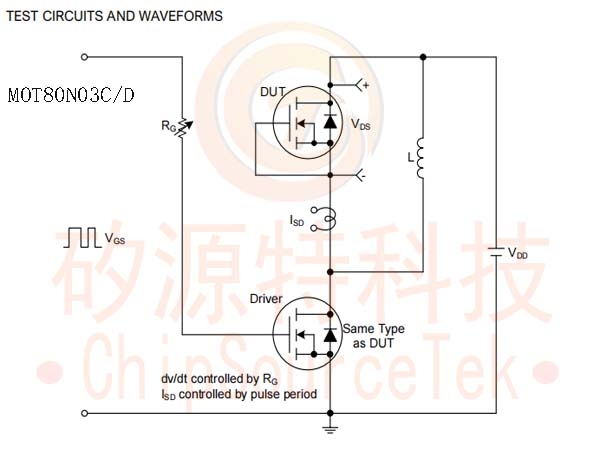

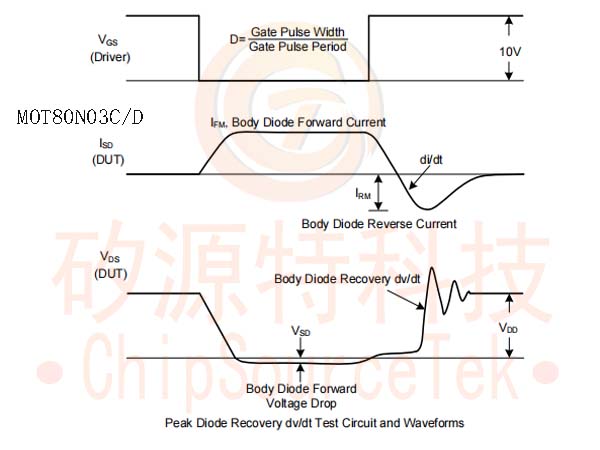

MOT80N03C/D Test Circuits and Waveforms：

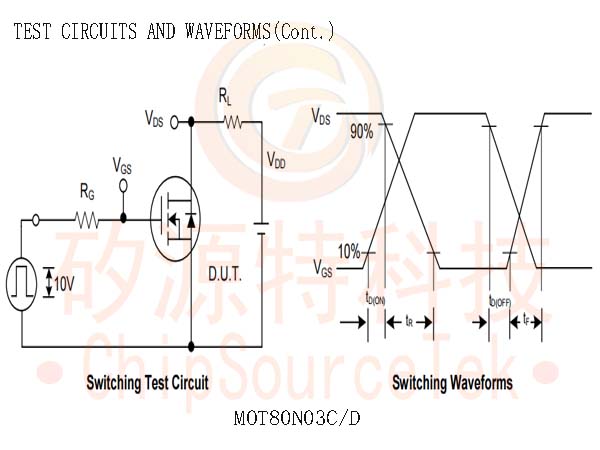

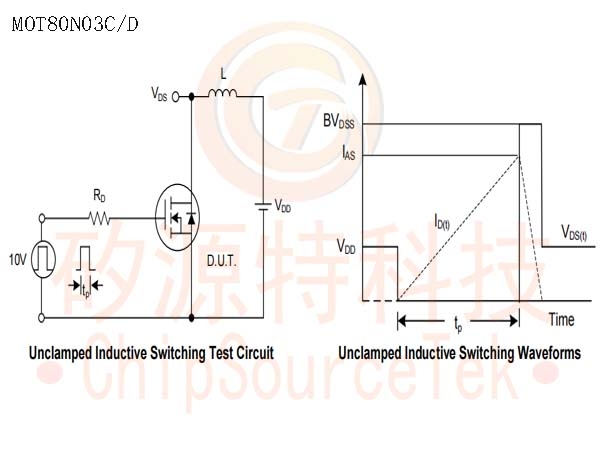

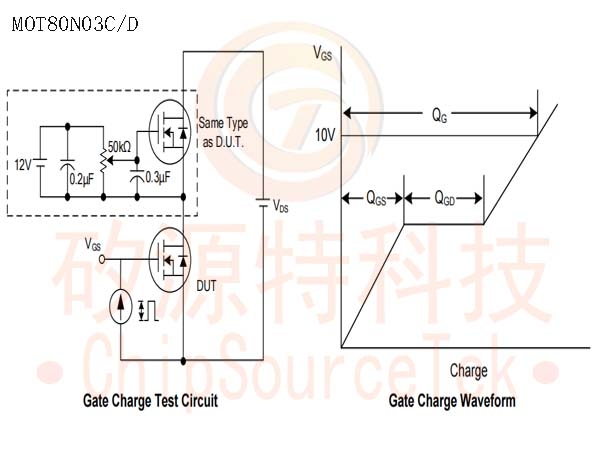

MOT80N03C/D Test Circuits and Waveforms(Cont.)
