    单N-MOS

    CST30N03B PRPAK3*3

        CST30N03B是BVDSS=30V,RDSON=9.5mΩ,ID=25A的N沟道快速切换mosfets。提供PRPAK3*3封装。
        The CST30N03B is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
        The CST30N03B meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
      CST30N03B Description/描述:
          CST30N03B 是BVDSS=30V,RDSON=9.5mΩ,ID=25A的N沟道快速切换mosfets。提供PRPAK3*3封装。
          The CST30N03B is the high cell density trenched N-ch MOSFETs, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
          The CST30N03B meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

      CST30N03B Features/特性:
      Green Device Available
      Super Low Gate Charge
      Excellent CdV/dt effect decline
      Advanced high cell density Trench technology

      CST30N03B Product Summary/产品概览：
      BVDSS
      RDSON
      ID

      30V

      9.5mΩ

      25A

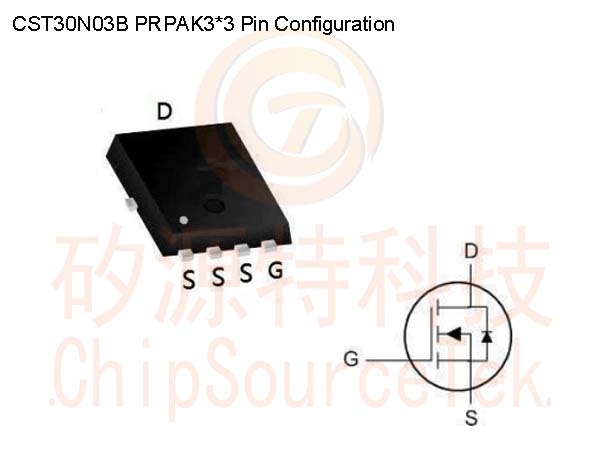

      CST30N03B PRPAK3*3 Pin Configuration//引脚配置:

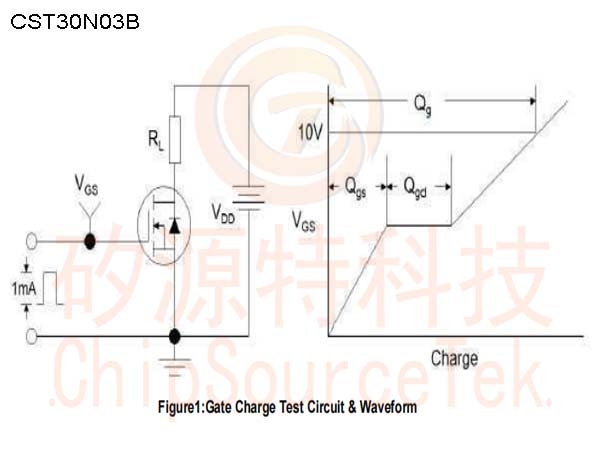

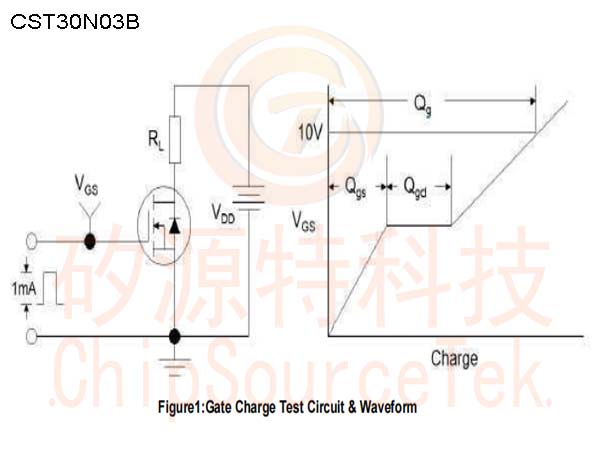

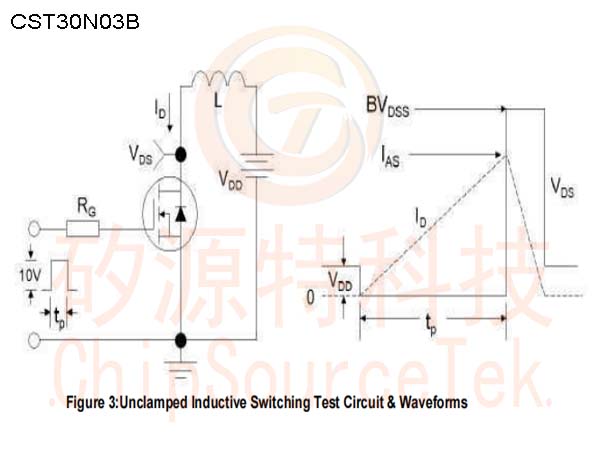

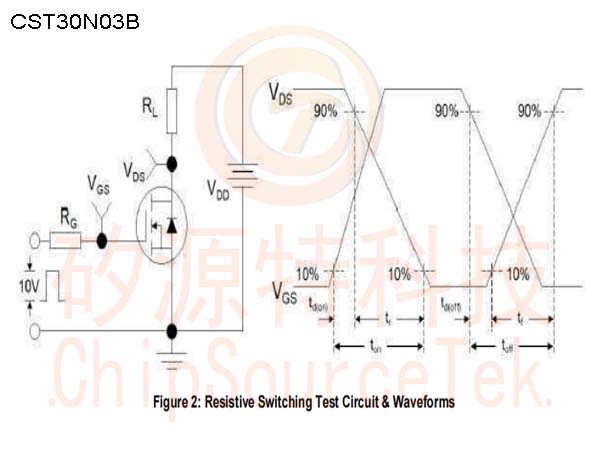

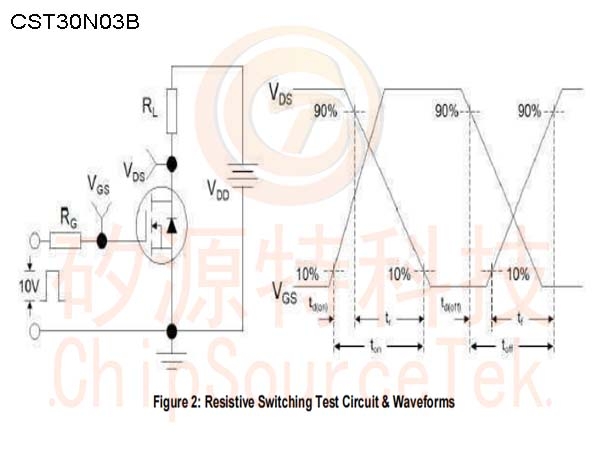

      CST30N03B Test Circuit/测试电路：
