FM3080SC是VDS=30V,ID=65A,RDS(ON)=5.4m? (Typ.) @VGS=10V,RDS(ON)=7.8m? (Typ.) @ VGS=4.5V的N通道沟槽电源Mosfet。提供TO-252封装。

FM3080SC Description/描述:

FM3080SC是VDS=30V,ID=65A,RDS(ON)=5.4m? (Typ.) @VGS=10V,RDS(ON)=7.8m? (Typ.) @ VGS=4.5V的N通道沟槽电源Mosfet。提供TO-252封装。

FM3080SC Features/特点：

30V,65A

RDS(ON)=5.4m? (Typ.) @ VGS =10V

RDS(ON)=7.8m? (Typ.) @ VGS =4.5V

Advanced Trench Technology

Provide Excellent RDS(ON) and Low Gate Charge

FM3080SC Application/应用：

Load Switch

PWM Application

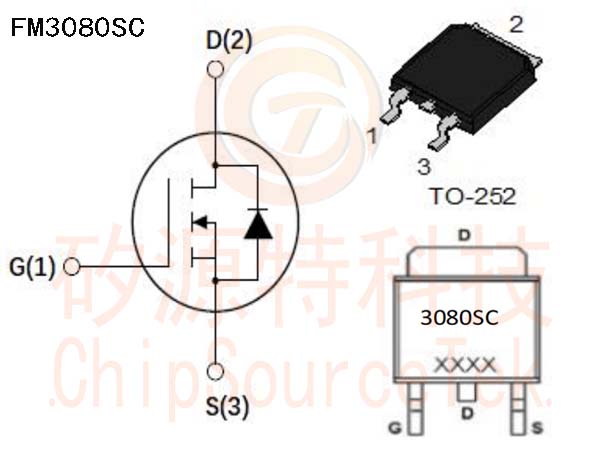

FM3080SC Package/封装：

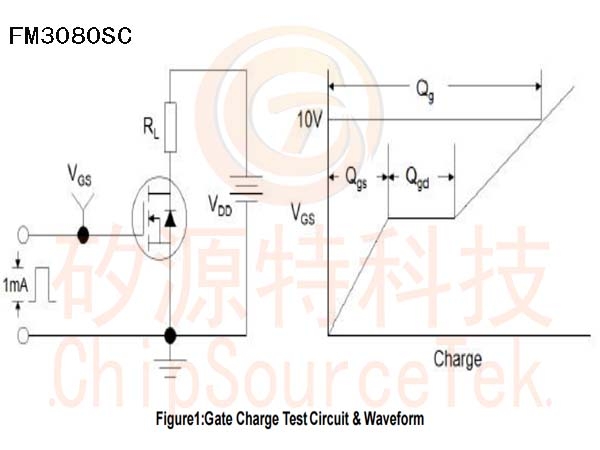

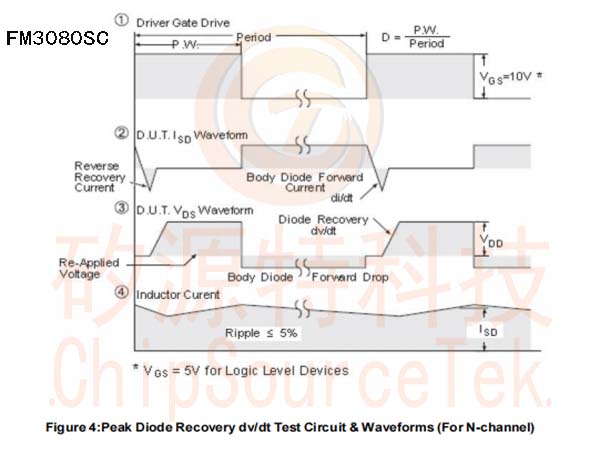

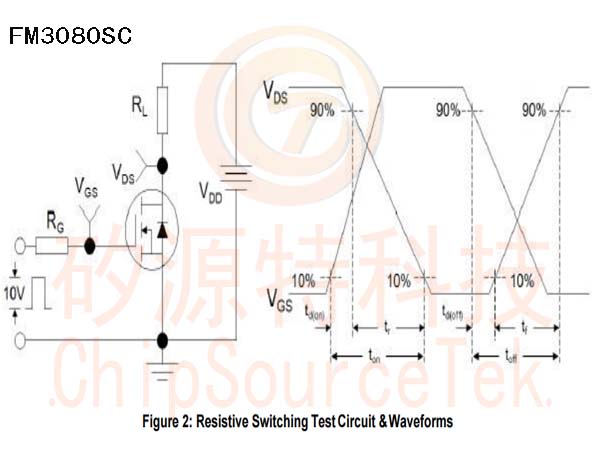

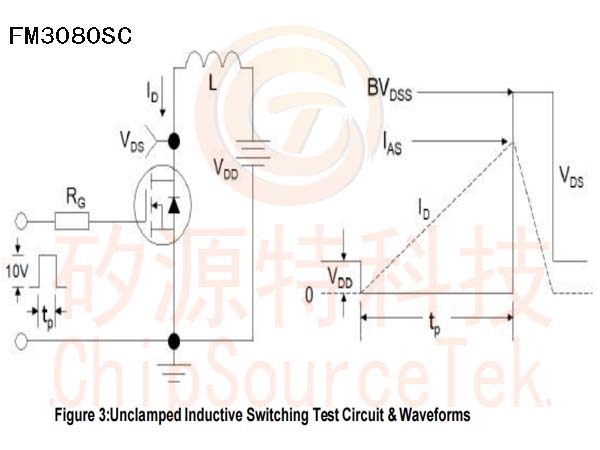

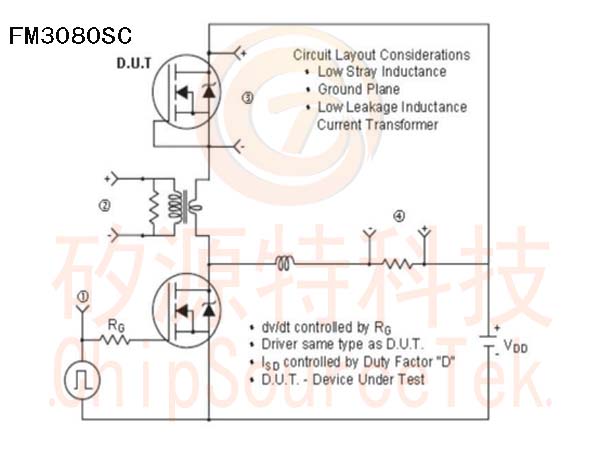

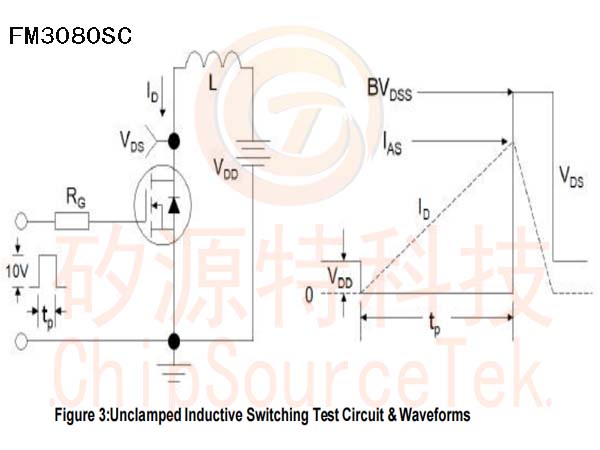

FM3080SC Test Circuit/测试电路：
