PE8430DG是VDS=40V，ID=30A，RDS(ON)<13m?@VGS=10V，RDS(ON)<17m?@VGS=4.5V的N沟道MOSFET。
PE8430DG的丝印是PE8430DG，PE8430DG提供DFN5x6-8L封装。

The PE8430DG uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE8430DG概述：

PE8430DG是VDS=40V，ID=30A，RDS(ON)<13m?@VGS=10V，RDS(ON)<17m?@VGS=4.5V的N沟道MOSFET。
PE8430DG的丝印是PE8430DG，PE8430DG提供DFN5x6-8L封装。

The PE8430DG uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE8430DG特性：

VDS = 40V, ID = 30A

RDS(ON) < 13m? @ VGS=10V

RDS(ON) < 17m? @ VGS=4.5V

High Power and current handing capability

Lead free product is acquired

Surface Mount Package

PE8430DG应用：

PWM applications

Load switch

Power management

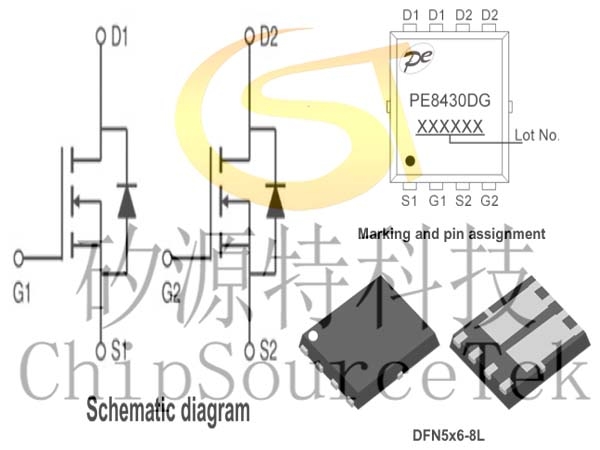

PE8430DG典型应用及引脚：
