    当前位置：云顶贵宾会 >> 产品中心 >> Mosfet >> 单P-MOS

    单P-MOS

    CST4407A SOP8

        CST4407A是一款VDS=-30V,ID=-12A的P通道快速切换mosfet.
        The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
        The CST4407A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
      CST4407A Description（概述）：
          CST4407A是一款VDS=-30V,ID=-12A的P通道快速切换mosfet.
          The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
          The CST4407A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.

      CST4407A Features（特性）：
      100% EAS Guaranteed
      Green Device Available
      Super Low Gate Charge
      Excellent CdV/dt effect decline
      Advanced high cell density Trench technology

      CST4407A Product Summary（产品目录）：

      BVDSS
      RDSON
      ID
      -30V
      9.5 mΩ
      -12A

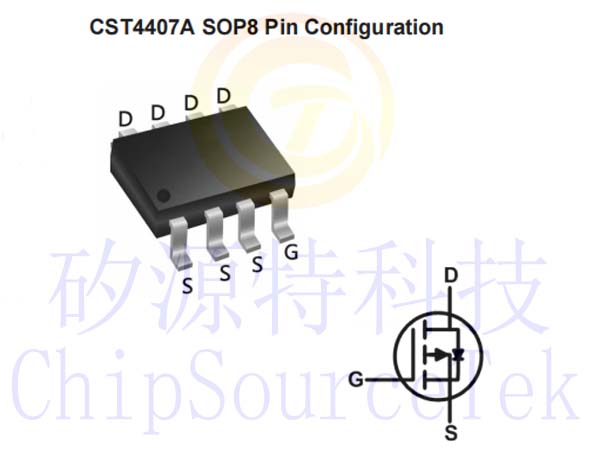

      CST4407A SOP8 Pin Configuration（引脚配置）：

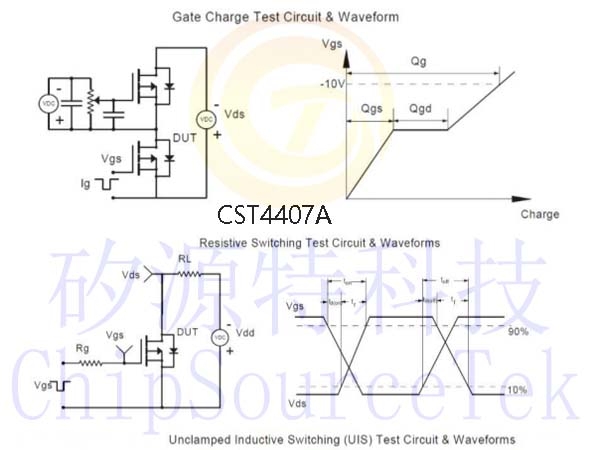

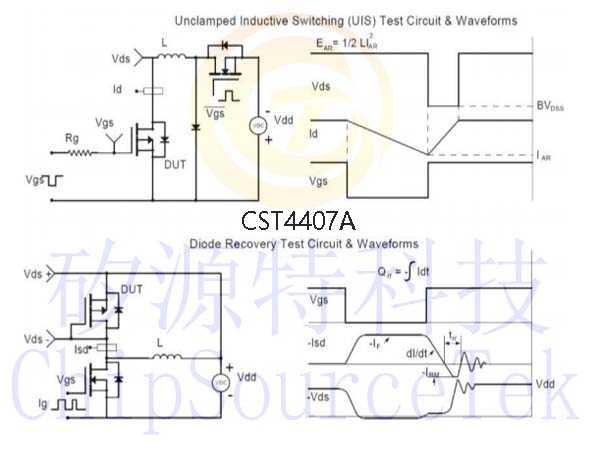

      CST4407A Test Circuit（测试电路）：
