产品中心

< >

PE73100G是VDS=-30V, ID=-100A，RDS(ON)<3.2m?@VGS=-10V，RDS(ON)<5m?@VGS=-4.5V的P沟道增强模式电源Mosfet

The PE73100G uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE73100G Description/描述：

PE73100G是VDS=-30V, ID=-100A，RDS(ON)<3.2m?@VGS=-10V，RDS(ON)<5m?@VGS=-4.5V的P沟道增强模式电源Mosfet

The PE73100G uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE73100G Features/特性：

VDS=-30V, ID=-100A

RDS(ON)<3.2m?@VGS=-10V

RDS(ON)<5m?@VGS=-4.5V

High Power and current handing capability

Lead free product is acquired

Surface Mount Package

PE73100G Application/应用：

PWM applications

Load switch

Power management

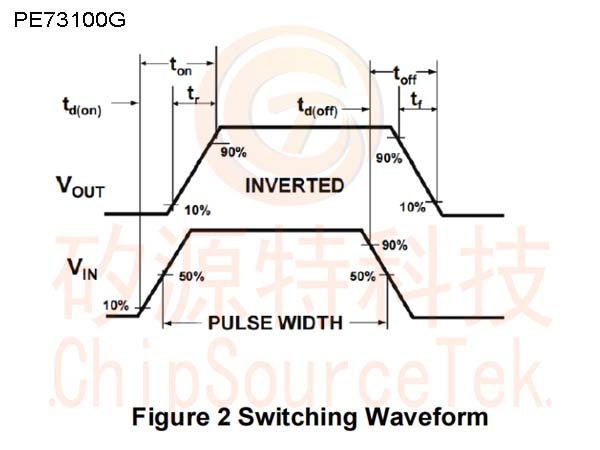

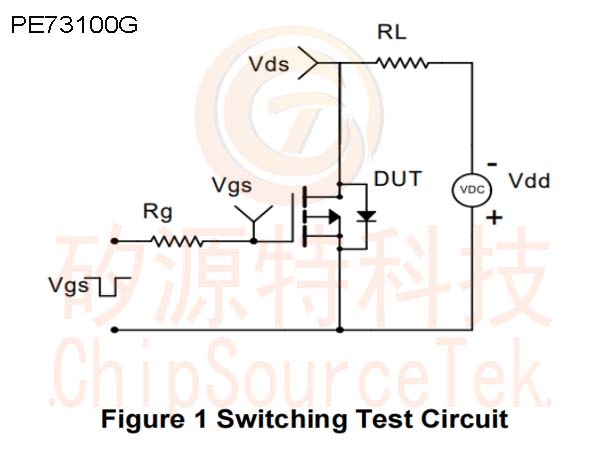

PE73100G Typical Electrical and Thermal Characteristics/典型的电气和热特性：
