    XT25F08B-S

    The XT25F08B-S (8M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#).

    The Dual I/O data is transferred with speed of 216Mbits/s and the Quad I/O & Quad output data is transferred wit speed of 432Mbits/s.
      XT25F08B-S General Description:
          The XT25F08B-S (8M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O data is transferred with speed of 216Mbits/s and the Quad I/O & Quad output data is transferred wit speed of 432Mbits/s.

      XT25F08B-S Features:
      8M -bit Serial Flash
          1024K-byte
          256 bytes per programmable page
      Support SFDP & Unique ID
      Standard, Dual,Quad SPI
          Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD#
          Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD#
          Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3
      FlexibleArchitecture
          Sector of 4K-byte
          Block of 32/64k-byte
      Advanced security Features
          4*256-Byte Security Registers WithOTP Lock
      Software/HardwareWrite Protection
          Write protect all/portion of memory via software
          Enable/Disable protection withWP# Pin
          Top or Bottom, Sector or Block selection
      Package Options
          See 1.1 Available Ordering OPN
          All Pb-free packages are compliant RoHS, Halogen-Free and REACH.
      Known Good Die “KGD”version
      Temperature Range & Moisture Sensitivity Level
          Industrial Level Temperature. (-40℃ to +85℃), MSL3
      Low Power Consumption
          15uA typical standby current
          0.06uA typical deep power down current
      Single Power SupplyVoltage: Full voltage range:
          2.7~3.6V
      Minimum 100,000 Program/Erase Cycle
      High Speed Clock Frequency
          108MHz for fast read with 30PF load
          Dual I/O Data transfer up to 216Mbits/s
          Quad I/O Data transfer up to 432Mbits/s
      Program/EraseSpeed
          Page Program time: 0.4mstypical
          Sector Erase time: 70mstypical
          Block Erase time: 0.15/0.25stypical
          Chip Erase time: 2.5stypical

      XT25F08B-S Available Ordering OPN:
      OPN
      Package Type
      Package Carrier
      XT25F08BSOIGU-S
      SOP8 150mil
      Tube
      XT25F08BSOIGT-S
      SOP8 150mil
      Tape & Reel
      XT25F08BSSIGU-S
      SOP8 208mil
      Tube
      XT25F08BSSIGT-S
      SOP8 208mil
      Tape & Reel
      XT25F08BDFIGT-S
      DFN8 2x3x0.55 mm
      Tape & Reel

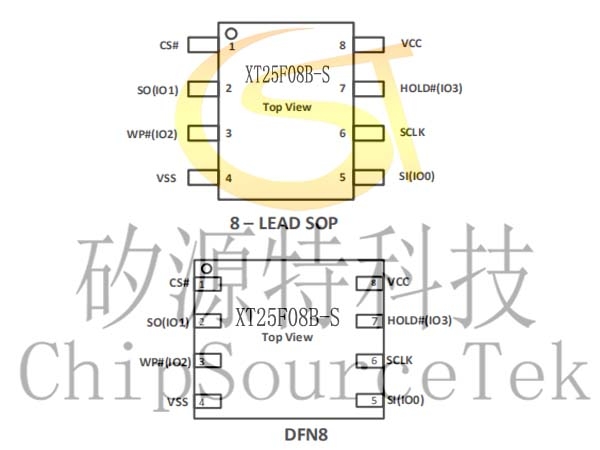

      XT25F08B-S Connection Diagram:

      XT25F08B-S Pin Description:
      Pin Name
      I/O
      Description
      CS#
      I
      Chip SelectInput
      SO (IO1)
      I/O

      Data Output (Data Input Output 1)

      WP# (IO2)
      I/O

      Write Protect Input (Data Input Output 2)

      VSS

      Ground
      SI (IO0)
      I/O

      Data Input (Data Input Output 0)

      SCLK
      I
      Serial Clock Input
      HOLD#
      I/O

      Hold Input (Data Input Output 3)

      VCC

      Power Supply

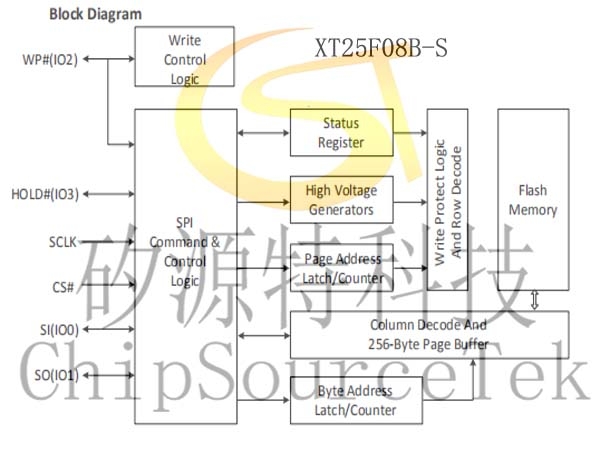

      XT25F08B-S Block Diagram:
