    The MT3608 is a constant frequency, 6-pin SOT23 current mode step-up converter intended for small, low power applications. The MT3608 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life.

    The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The MT3608 is available in a small 6-pin SOT-23 package.

    MT3608是一种恒定频率的6引脚SOT23电流模式升压转换器，低功耗应用。MT3608在1.2MHz，并允许使用微小、低成本电容器和电感器的高度不超过2mm。内部软启动导致较小的涌入电流延长电池寿命。

    MT3608具有自动切换到脉冲的功能轻负载时的频率调制模式。这个MT3608包括欠压锁定、电流限制和热过载保护，以防止输出过载时的损坏。这个MT3608可在小型封装SOT-23-6中使用。

MT3608 Features/特性：

Integrated 80mΩ Power MOSFET

2V to 24V Input Voltage

1.2MHz Fixed Switching Frequency

Internal 4A Switch Current Limit

Adjustable Output Voltage

Internal Compensation

Up to 28V Output Voltage

Automatic Pulse Frequency Modulation Mode at Light Loads

up to 93% Efficiency

Available in a 6-Pin SOT23-6 Package

MT3608 Applications/应用：

Battery-Powered Equipment

Set-Top Boxed

LCD Bais Supply

DSL and Cable Modems and Routers

Networking cards powered from PCI or PCI express slots

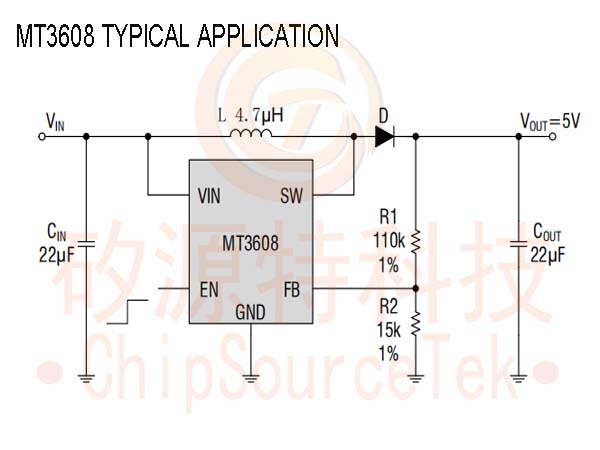

MT3608 Typical Application：

	Order Part Number	Package	Top Marking
	MT3608	SOT23-6	B628DC

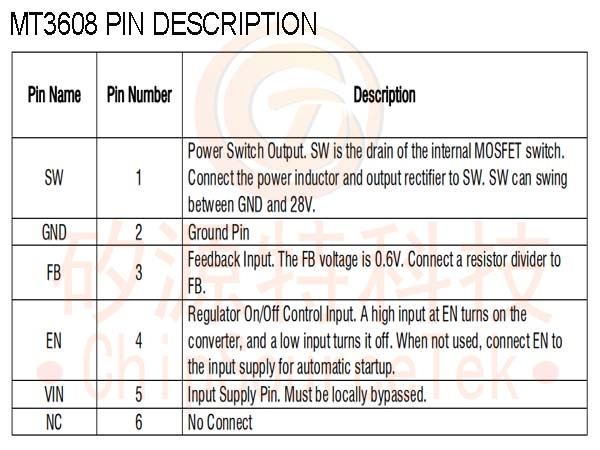

MT3608 Pin Description：
