RY8336 Description/描述:
The RY8336 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous current over a wide input supply range,with excellent load and line regulation.
The RY8336 requires a minimal number of readily available, external components and is available in a space saving ESOP8 package.
RY8336是一种高频、同步、校流、降压、开关模式转换器，具有内部功率�？�。它提供了一个非常紧凑的解决方案，提供了一个较宽的输入供电范围内的3a连续电流，具有良好的负载和线路调节。
RY8336需要最少数量的现成的外部组件，并可在一个节省空间的ESOP8包。
RY8336 Features/特性:
Wide 4.5V to 30V Operating Input Range
3A Continuous Output Current
500KHz Switching Frequency
Short Protection with Hiccup-Mode
Built-in Over Current Limit
Built-in Over Voltage Protection
PFM Mode for High Efficiency in Light Load
Internal Soft-Start
130mΩ/100mΩ Low RDS(ON) Internal Power MOSFETs
Output Adjustable from 0.923V
No Schottky Diode Required
Integrated internal compensation
Thermal Shutdown
Available in ESOP8 Package
-40°C to +85°C Temperature Range
RY8336 Applications/应用：
Digital Set-top Box (STB)
Tablet Personal Computer (Pad)
Flat-Panel Television and Monitor
Wi-Fi Router / AP
Digital Video Recorder (DVR)
Portable Media Player (PMP)
Cable Modem / XDSL
General Purposes

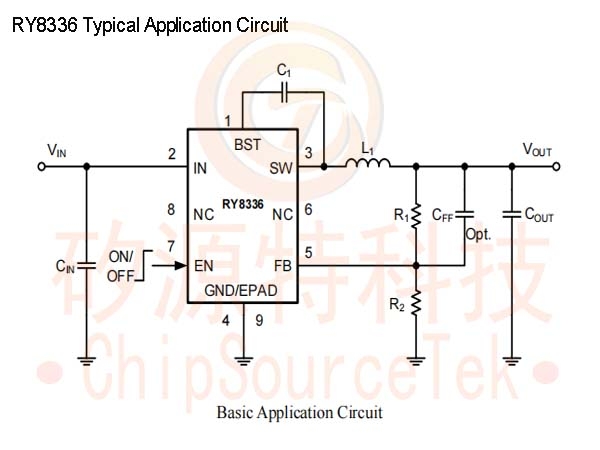

RY8336 Typical Application Circuit:

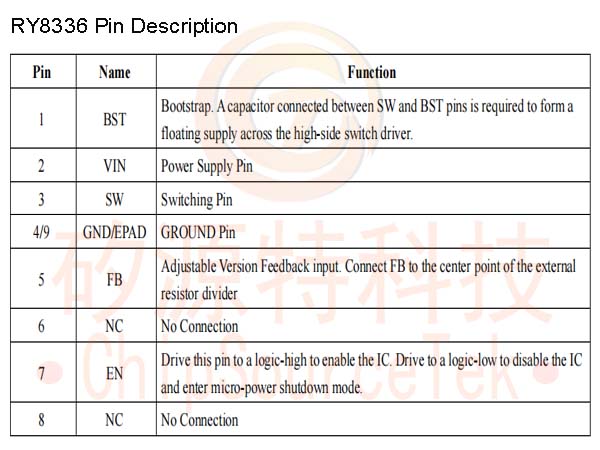

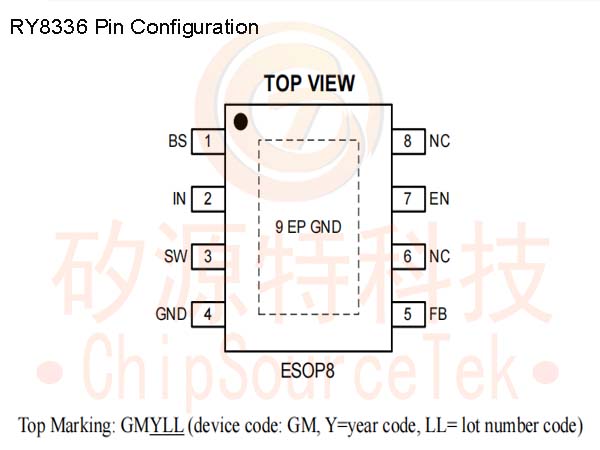

RY8336 Pin Description:
RY8336 Pin Description:
RY8336 Order Information (1):
|
Marking
|
Part No.
|
Model
|
Description
|
Package
|
T/R Qty
|
|
GMYLL |
70301579 |
RY8336 |
RY8336 Buck, 4.5-30V, 3A, 500KHz, VFB 0.923V, ESOP8 |
ESOP8 |
3000PCS |

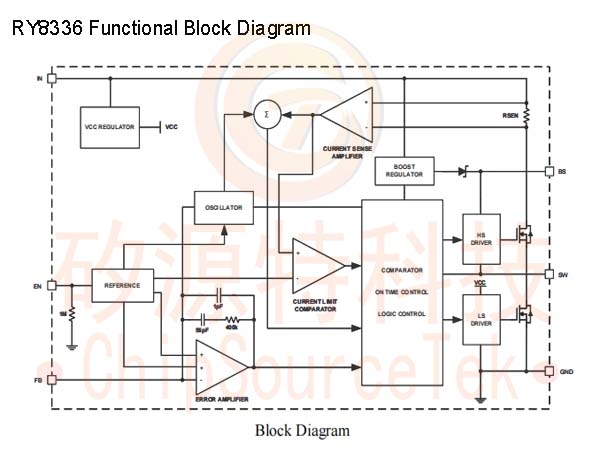

RY8336 Functional Block Diagram:
