FM3585概述：
The FM3585 is a CMOS silicon-on-insulator (SOI), single- pole, double-throw (SPDT) switch. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for WLAN applications such as 802.11 a/b/g/n/ac/ax.

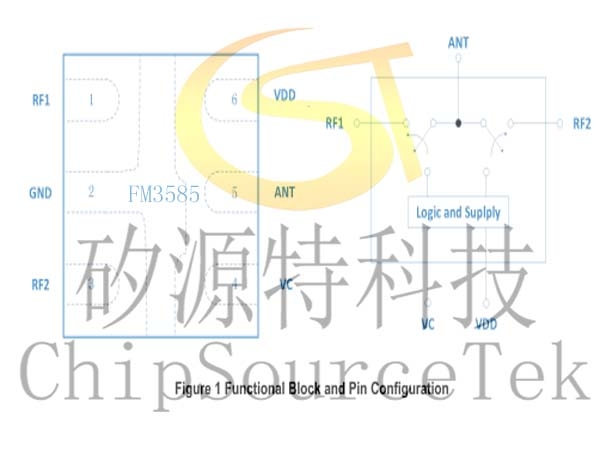

The FM3585 SPDT switch is provided in a compact1.0mm x 1.0mm x 0.45mm 6-lead QFN package. A functional block diagram, pin configuration and package are shown in Figure 1. Signal pin assignments and functional pin descriptions are provided in Table 1.
FM3585特性：
Broadband frequency range: 0.5 to 7.125GHz
Ultra low switching time：150ns
Low insertion 0.80dB@6.0GHz
Input 0.1dB compression point: 33dBm
Small, QFN（6-pin, 1.0mm x 1.0mm x 0.45mm） package, MSL1
FM3585应用：
WLAN 802.11ax/ac/b/g/n networks
WLAN repeaters
ISM band radios
Low power transmitting and receiving systems
FM3585功能框图与引脚配置：

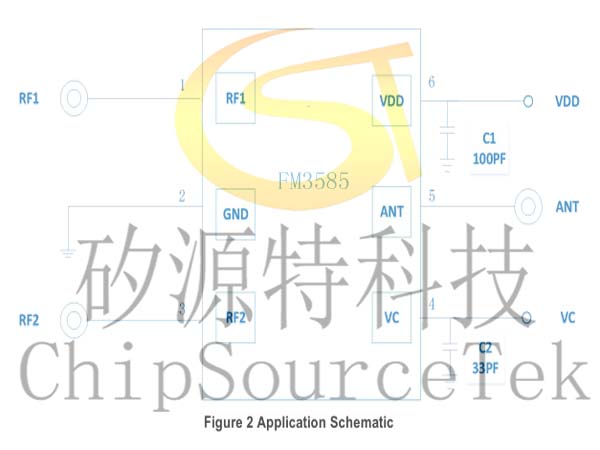

FM3585应用示意图：
FM3585引脚说明：
|
Pin No. |
Name |
Description |
Pin No. |
Name |
Description |
|
1 |
RF1 |
RF Port1 |
4 |
VC |
Logic Control Voltage |
|
2 |
GND |
Ground |
5 |
ANT |
Antenna Port |
|
3 |
RF2 |
RF port 2 |
6 |
VDD |
Power Supply Voltage |
