    5GÉ䯵

    LX1022

        The LX1022 is a CMOS, Silicon-On-Insulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high linearity performance, low insertion loss and high isolation.
        Switching is controlled by one control voltage pin, VCTL. Depending on the logic voltage level applied to this pin, the RF1 and RF2 pins connect to one of the two other RF3 and RF4 pins through a low insertion loss path, while maintaining a high isolation path to the alternate port, ANT. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.
        The LX1022 DPDT switch is provided in a QFN 10- pin, 1.1mm x 1.5mm x 0.45mm package. The functional block diagram and the pin configuration are shown in Figure 1. Signal pin assignments and functional pin descriptions are provided in Table 1.
      LX1022¸ÅÊö£º
          The LX1022 is a CMOS, Silicon-On-Insulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high linearity performance, low insertion loss and high isolation.
          Switching is controlled by one control voltage pin, VCTL. Depending on the logic voltage level applied to this pin, the RF1 and RF2 pins connect to one of the two other RF3 and RF4 pins through a low insertion loss path, while maintaining a high isolation path to the alternate port, ANT. No external DC blocking capacitors are required on the RF path as long as no DC voltage is applied externally.
          The LX1022 DPDT switch is provided in a QFN 10- pin, 1.1mm x 1.5mm x 0.45mm package. The functional block diagram and the pin configuration are shown in Figure 1. Signal pin assignments and functional pin descriptions are provided in Table 1.

      LX1022
      ÌØÐÔ£º
      Broadband frequency range: 619 to 5925MHz
      GPIO interface
      RoHS compliant package
      Compact 1.1mm x 1.5mm x 0.45mm QFN 10-pin package, MSL1

      LX1022
      Ó¦Óãº
      2G/3G/4G/5G antenna swapping

      LX1

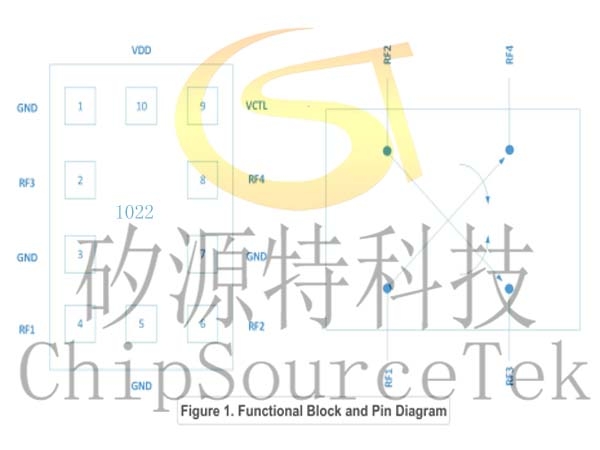

      022¹¦ÄÜ·½¿é¼°Òý½Åͼ£º

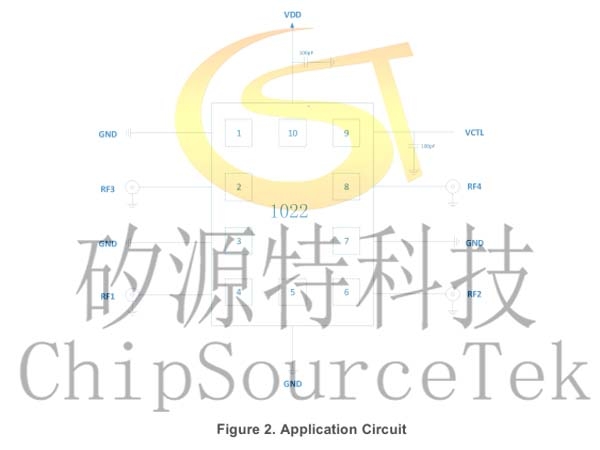

      LX1022Ó¦Óõç·£º

      LX1022Òý½ÅÃèÊö£º

      No.

      Name

      Description

      No.

      Name

      Description

      1

      GND

      Ground

      6

      RF2

      RF Port2

      2

      RF3

      RF Port3

      7

      GND

      Ground

      3

      GND

      Ground

      8

      RF4

      RF Port4

      4

      RF1

      RF Port1

      9

      VCTL

      Control Voltage Pin

      5

      GND

      Ground

      10

      VDD

      DC Power Supply



      Table 2. VCTL Truth Table for RF Channel Operating Modes

      VCTL RF Channel Operating Modes
      Low RF1 to RF3 On, RF2 to RF4 On
      High RF1 to RF4 On, RF2 to RF3 On



      LX1022

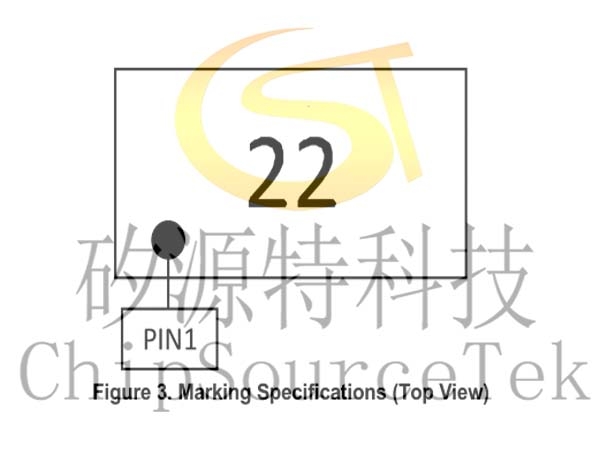

      Marking Specifications:
